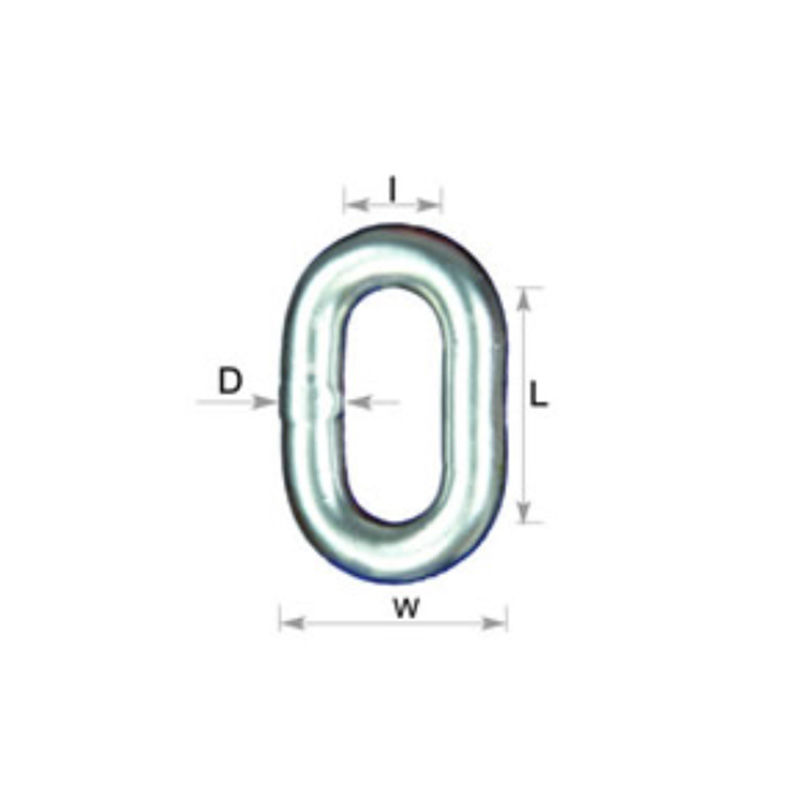

| チェーンサイズ | 内側の長さ | 幅の外 | 作業負荷 | テスト力 | 分破壊力 | |||
| d | 許容範囲 | l | 許容範囲 | w | 許容範囲 | |||
| mm | ±mm | mm | ±mm | mm | ±mm | kg | kn | kn |
| 2.0 | ±0.10 | 22.0 | ±1.0 | 8.0 | ±0.4 | 25.0 | 0.5 | 1.3 |
| 2.5 | ±0.12 | 24.0 | ±1.1 | 10.0 | ±0.5 | 40.0 | 0.8 | 2.0 |
| 3.0 | ±0.15 | 26.0 | ±1.2 | 12.0 | ±0.6 | 55.0 | 1.1 | 3.2 |
| 3.5 | ±0.20 | 28.0 | ±1.3 | 14.0 | ±0.7 | 80.0 | 1.5 | 3.9 |
| 4.0 | ±0.20 | 32.0 | ±1.5 | 16.0 | ±0.8 | 100.0 | 2.5 | 6.5 |
| 4.5 | ±0.23 | 34.0 | ±1.7 | 18.0 | ±0.9 | 128.0 | 3.0 | 8.0 |
| 5.0 | ±0.25 | 35.0 | ±1.8 | 20.0 | ±1.0 | 160.0 | 4.0 | 10.0 |
| 5.5 | ±0.25 | 38.5 | ±1.8 | 22.0 | ±1.1 | 195.0 | 4.2 | 10.5 |
| 6.0 | ±0.30 | 42.0 | ±2.0 | 24.0 | ±1.2 | 200.0 | 5.0 | 12.0 |
| 7.0 | ±0.35 | 49.0 | ±2.5 | 28.0 | ±1.4 | 300.0 | 7.5 | 19.0 |
| 8.0 | ±0.40 | 52.0 | ±2.5 | 32.0 | ±1.6 | 400.0 | 10.0 | 25.0 |
| 8.5 | ±0.40 | 56.0 | ±2.8 | 34.0 | ±1.7 | 460.0 | 10.2 | 25.5 |
| 9.0 | ±0.50 | 59.0 | ±3.0 | 36.0 | ±1.8 | 530.0 | 10.5 | 32.0 |
| 10.0 | ±0.50 | 65.0 | ±3.2 | 40.0 | ±2.0 | 630.0 | 16.0 | 40.0 |
| 11.0 | ±0.50 | 72.0 | ±3.4 | 44.0 | ±2.0 | 790.0 | 15.8 | 47.5 |
| 12.0 | ±0.60 | 78.0 | ±3.6 | 48.0 | ±2.3 | 940.0 | 18.8 | 56.5 |
| 13.0 | ±0.65 | 82.0 | ±4.0 | 52.0 | ±2.5 | 1000.0 | 25.0 | 63.0 |
| 16.0 | ±0.80 | 100.0 | ±5.0 | 64.0 | ±3.2 | 1600.0 | 40.0 | 100.0 |
| 18.0 | ±0.90 | 113.0 | ±5.2 | 70.0 | ±3.2 | 2120.0 | 42.3 | 127.0 |
| 19.0 | ±0.90 | 119.0 | ±5.6 | 72.0 | ±3.4 | 2370.0 | 47.3 | 142.0 |
| 20.0 | ±1.00 | 120.0 | ±6.0 | 75.0 | ±3.8 | 2500.0 | 50.0 | 160.0 |
| 22.0 | ±1.20 | 127.0 | ±6.0 | 82.0 | ±4.0 | 3170.0 | 63.3 | 190.0 |
| 25.0 | ±1.30 | 140.0 | ±6.6 | 85.0 | ±4.2 | 4090.0 | 81.7 | 245.0 |
| 28.0 | ±1.40 | 152.0 | ±7.0 | 96.0 | ±4.7 | 6000.0 | 120.0 | 300.0 |
| 32.0 | ±1.60 | 171.0 | ±7.8 | 108.0 | ±5.2 | 8000.0 | 160.0 | 400.0 |
